Desktop Output Users

IPTVBoss uses layouts and user records to create separate output links for different customers, household members, or devices.

Manage users

  1. Open the Sources menu.
  2. Select Manage Users.
  3. Add or select a user.
  4. Set User Enabled when the user should receive output.
  5. Assign only layouts that are enabled.
  6. Review the source credentials and enable the credentials the user should use.
  7. Save the user and verify the generated links.

Manage Users dialog with layout preview and XC password controls

Use one source per provider

Add each provider once, regardless of how many users have accounts with that provider. Store each user's provider credentials in that user's record instead of creating a duplicate source for every account.

Understand provider credentials

For example, when several users have accounts with Provider A:

  1. Add Provider A once using the provider credentials for the source.
  2. Open User Management.
  3. Add each customer or account as a separate IPTVBoss user.
  4. Add that user's Provider A username and password to the Provider A credential entry.
  5. Enable the user and the source credential.
  6. Assign the user's enabled layout. In Layout Manager, an enabled layout is shown in blue.
  7. Repeat the user steps for each additional account.

Repeat the source setup only when adding another provider. Create separate source entries for the same provider only when there is a specific reason to manage them independently.

Refresh provider expiry

Select a user in Manage Users, then choose Refresh Credentials. IPTVBoss checks the user's enabled Xtream Codes credentials and password-backed M3U credentials whose source has an XC URL. It uses the credential's alternate provider URL when one is configured.

The button shows Refreshing… while requests run in the background. The Manage Users dialog is temporarily disabled and cannot be closed until the refresh finishes. Review Provider refresh results for the result from each supported source.

Result Effect on saved values
Expiry refreshed or unchanged The provider confirmed the expiry; any supplied connection limit is updated.
Provider omitted expiry The previous expiry is kept and the supplied connection limit is updated.
Login rejected Expiry and connection limit become unknown. Check the provider credentials.
Rate limit, failed request, or invalid data Previous values are kept. For a rate limit, try later; for a failed request, review the IPTVBoss log.

Disable NoGUI user checks does not block manual refresh. For scheduled checks and their request limits, see Automatic NoGUI user checks.

XC account expiry

The expiry shown in desktop XC login details and returned to XC players is calculated for the selected layout. IPTVBoss considers enabled credentials used by enabled channels the user can access in that layout's enabled live, VOD, and series groups, including linked groups. Credentials for unrelated sources are excluded.

When every relevant credential has a known expiry date, the account expiry is the latest of those dates. For example, if two providers in the layout expire on September 20 and October 10, the XC account reports October 10. Each provider still has its own expiry; this does not extend access to the earlier-expiring provider.

If any relevant credential has an unknown or unlimited expiry, or no credentials qualify, desktop login details show No account expiry and the XC API returns a null expiry. This describes the account metadata; it does not guarantee that an individual provider login is valid.

XC passwords and activity

Each assigned XC-enabled layout has its own XC login password for this user. Select the layout in Layout Preview, then choose XC Password to edit the saved password or generate a new one. Passwords are case-sensitive; manual values may contain 6–64 letters, digits, or - . _ ~, while Generate creates a new 12-character lowercase value. The action is available only for an XC-enabled layout.

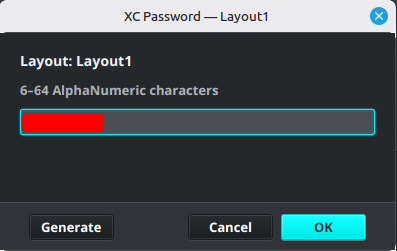

Desktop XC password dialog

When XC Server pairing is enabled, the selected user can show an XC Activity summary with the last successful synchronization, last playback, and stream. Select Activity to open the full activity table for all users.

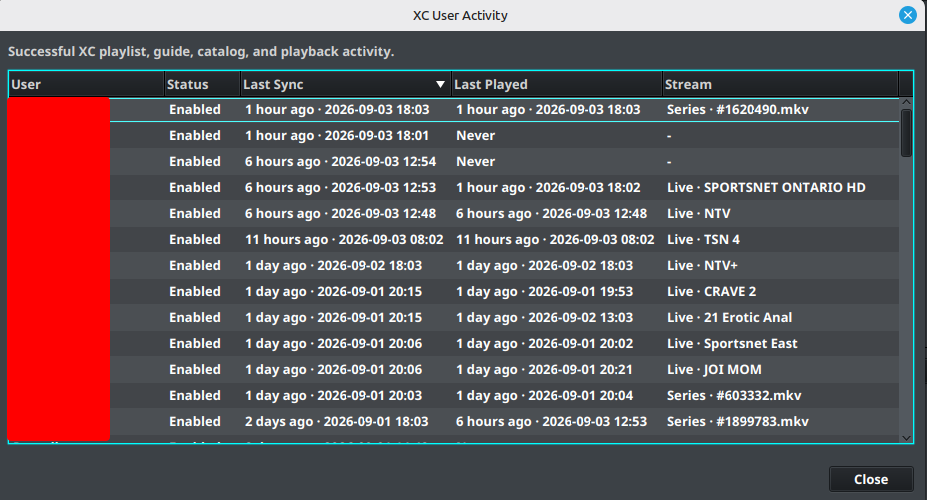

Desktop XC user activity

The activity view reports successful XC playlist, guide, catalog, and playback activity. Last Sync and Last Played use relative and exact timestamps; Stream identifies the most recently played live, VOD, or series item when that information is available. Activity is read from the paired XC Server, so it is unavailable until the desktop installation is paired and the server can be reached.

Each enabled user receives their own M3U link. Standard EPG output can be shared between users when the guide data is the same. XC Server users receive unique XMLTV links and a separate XC username/password pair for each assigned XC-enabled layout. Changing a layout password changes access to that layout; refresh or redistribute the affected link after saving.

PRO Universal EPG is often more efficient when every user uses the same EPG data. It allows IPTVBoss to publish one shared EPG file instead of generating multiple identical EPG files for separate users or layouts.

PRO For browser-based administration in the XC Server console, use XC Server Users. Server-side changes can trigger backups or cloud synchronization, so wait for the operation to finish before making another database change.

Warning

Do not include provider usernames, passwords, M3U links, EPG links, or access tokens in screenshots or support requests.

Note

If desktop user management is locked or unavailable, check the account plan and whether another IPTVBoss process is currently modifying users.

Continue with Connect a Player. For credential maintenance, see automatic NoGUI user checks and Email Notifications.
